Autonomous AI Agent for End-to-End Component Data Extraction

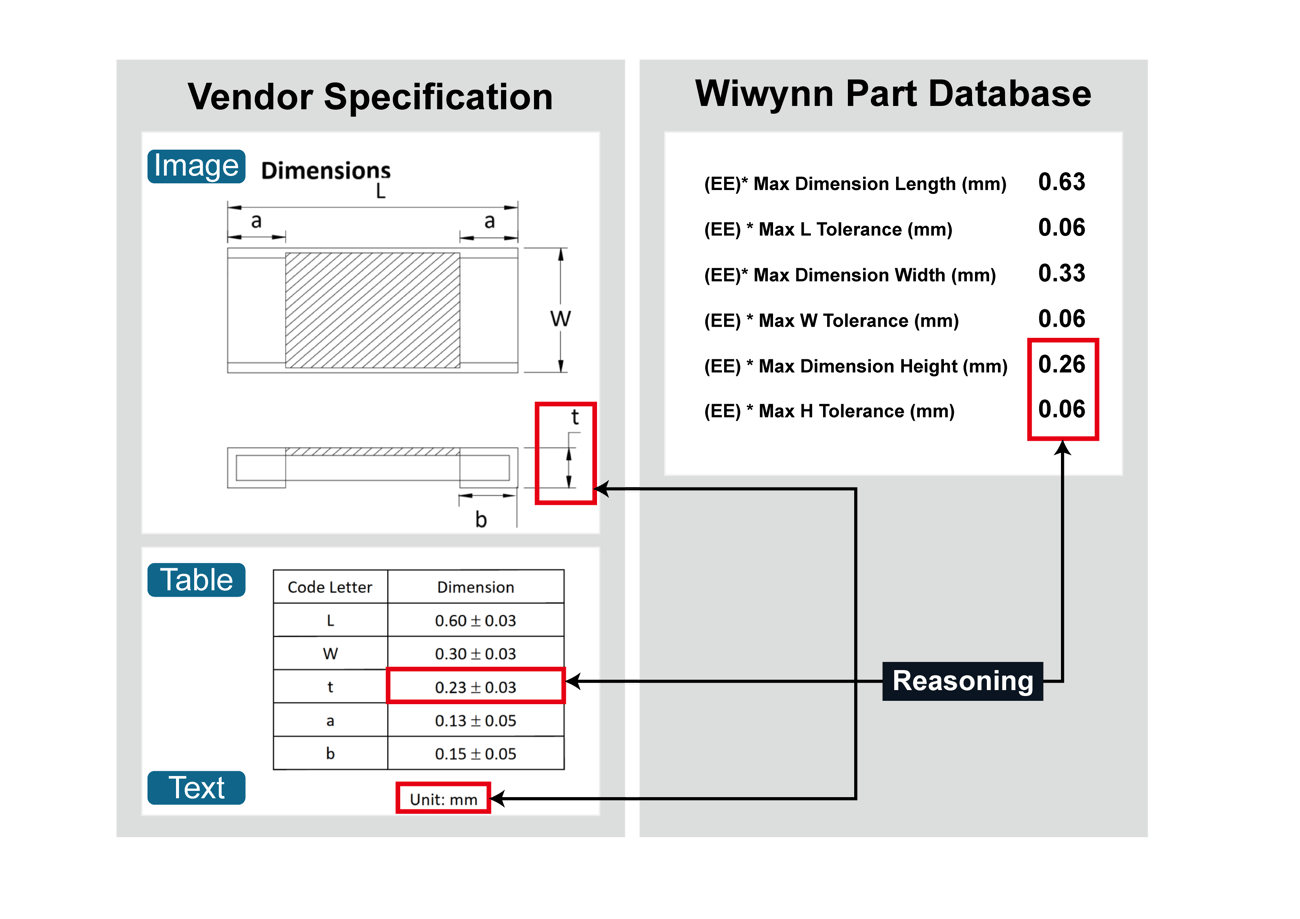

1. Objective

• Streamline: complex, error-prone manual data entry
• Reallocate: engineering talent to high-value innovation
• Automation: Achieve end-to-end automation for component administration

2. Challenges

• Interpreting ambiguous engineering terminology
• Requiring specialized engineering knowledge
• Handling inconsistent specification formats
• Parsing complex engineering graphics

3. Our Solution

3.1 Solution Overview

• Developed multi-phase data processing to enhance engineering graphic recognition
• Implemented AI-driven engineering data collection and analysis
• Integrated on-premise and public cloud resources

3.2 Intelligent Processing Pipeline

Transforms unstructured engineering content into structured, multimodal data

3.2.1 Data Preprocessing

• Unifies text, tables, and images into a single, context-rich JSON for LLM
• Applies OCR to extract and map image text to its corresponding parent page
• Loads customizable, component-specific attribute lists for direct extraction

3.2.2 Retrieval Augmentation

• Implements Hybrid Search (keyword + vector) for high-precision retrieval
• Utilizes Parent Page Retrieval to preserve critical context
• Employs a cross-encoder reranker to optimize semantic similarity and result relevance

3.2.3 Context Engineering

• Utilizes one universal prompt to handle all component types
• Embeds engineering terminology intent directly into the model
• Pinpoints correct attributes by component model name (especially dimensions)

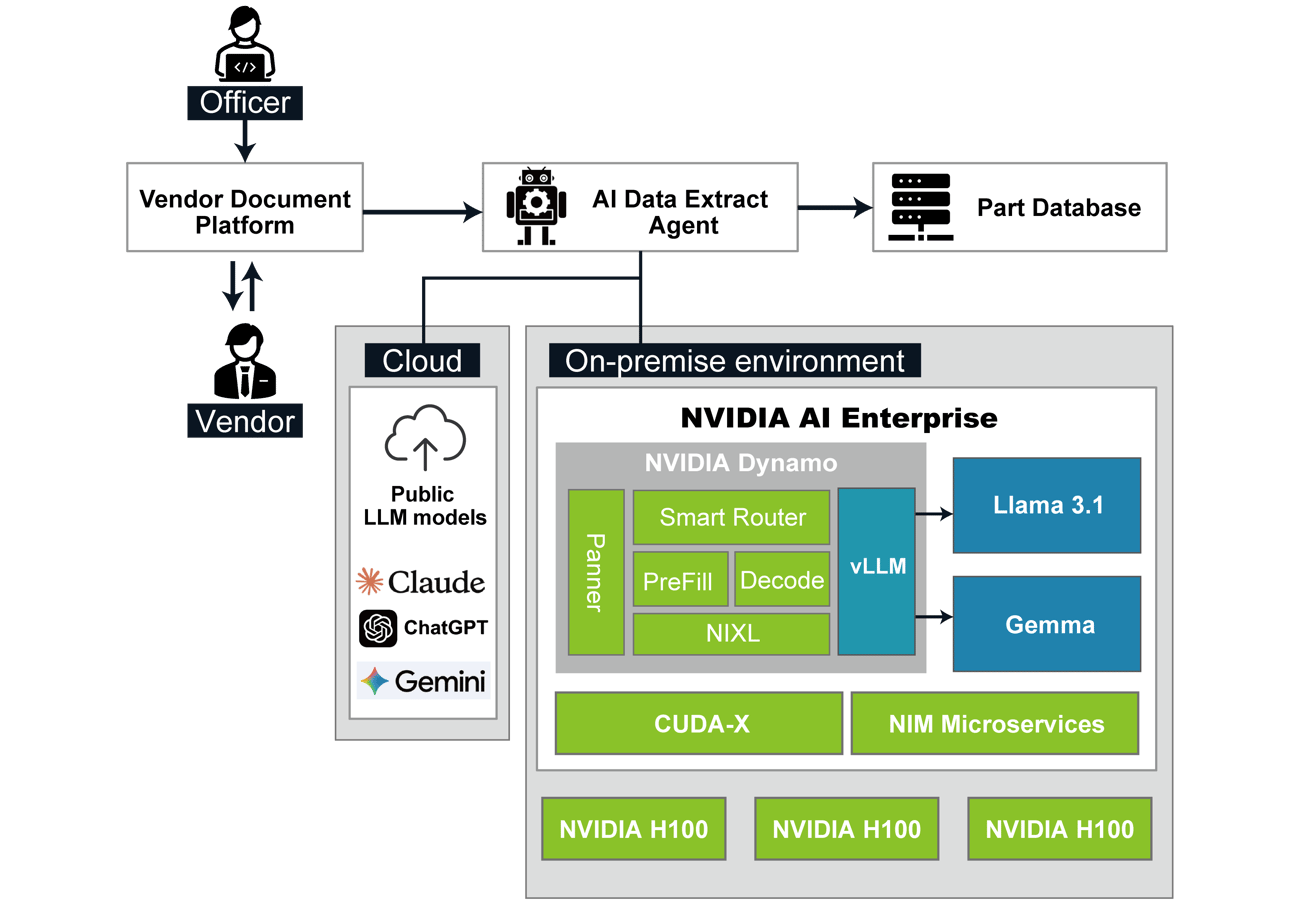

3.3 Data-Oriented Hybrid Cloud

• On-premise AI platform powered by OCP Grand Teton servers (8x NVIDIA H100 GPUs)
• Software stack built on NVIDIA AI Enterprise, running NVIDIA Dynamo
• Intelligently escalates high-demand workload to public LLM models (GPT, Gemini, Claude)
• Architecture balances data security, cost, and peak performance via intelligent distribution

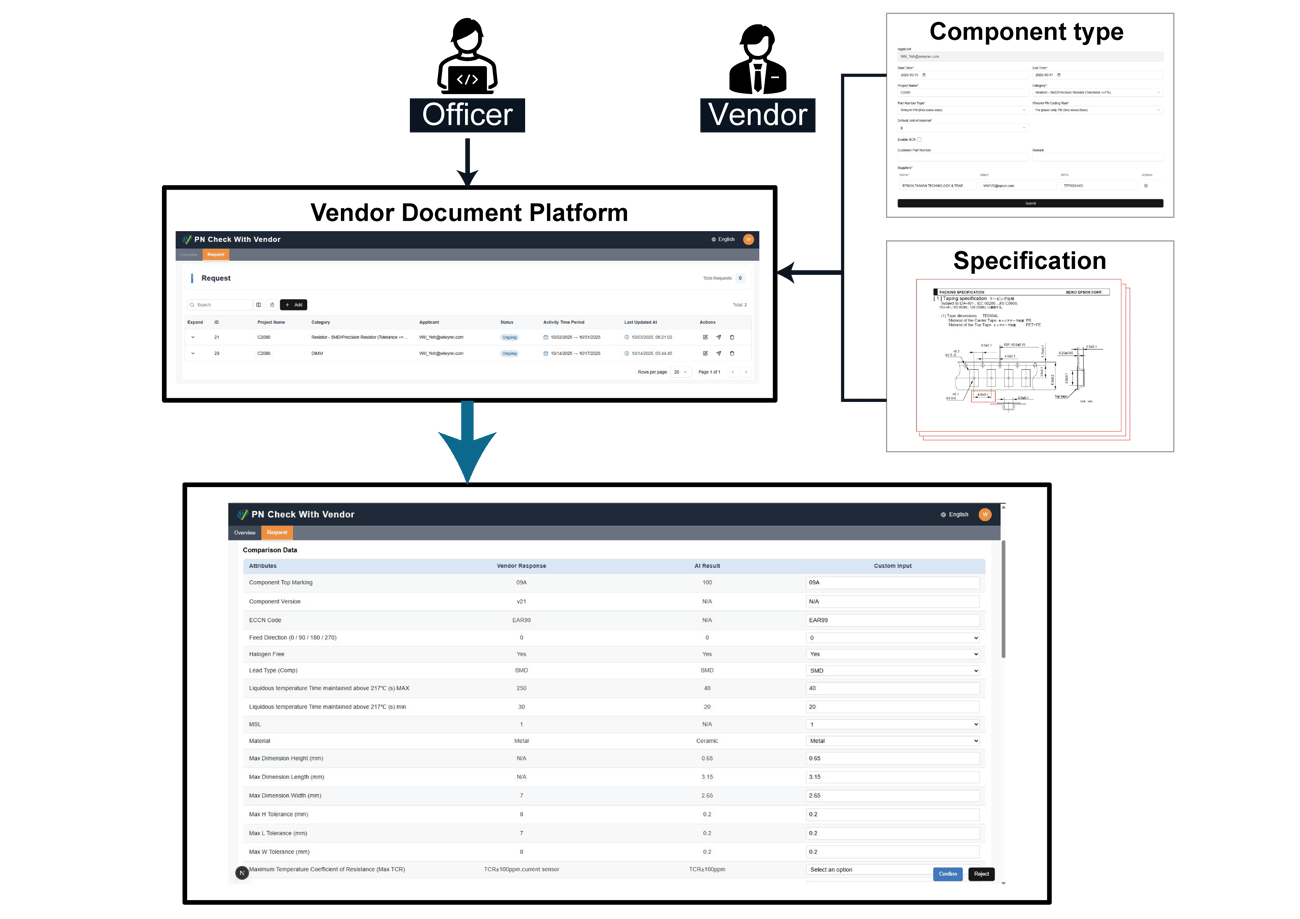

4. Key Achievements

• Efficiency: 83% reduction in component processing time (2 hours to 20 minutes)
• Autonomy: Fully autonomous, end-to-end AI agent for component database automation
• Scalability: Scalable engineering documents pipeline for knowledge distillation
• Reliability: Hybrid infrastructure for non-stop service
