ES100G2

The Advanced 1U Short-depth Platform for Edge AI Inference and vRAN/NFV

Features

5th Gen Intel® Xeon® CPUs with Enhanced Performance

Up to

Up to

0%

Higher AI inference performance

0%

Average performance gain

0%

Reduction in TCO from 5 year refresh cycle

The Wiwynn ES100G2, a compact 1U short-depth, single-socket edge server, features the 5th Gen Intel® Xeon® Processor. This processor delivers exceptional edge AI computing and network capabilities. Enhanced with built-in AI acceleration, Intel® Advanced Matrix Extensions (Intel® AMX), faster DDR5 memory, and PCIe Gen5, it achieves impressive performance-per-watt improvements across various workloads. This ensures exceptional performance and cost-effectiveness.

Optimized vRAN/NFV Platform in Far Edge



Designed for enhanced telemetry and network applications, the ES100G2 showcases a cutting-edge design optimized for virtualized Radio Access Network (vRAN) and Network Function Virtualization (NFV) capabilities. Serving as an ideal solution, it ensures a unified and efficient computing platform for a variety of vRAN and NFV applications in far-edge scenarios.

ES100G2_All-in-one_vRAN_platform

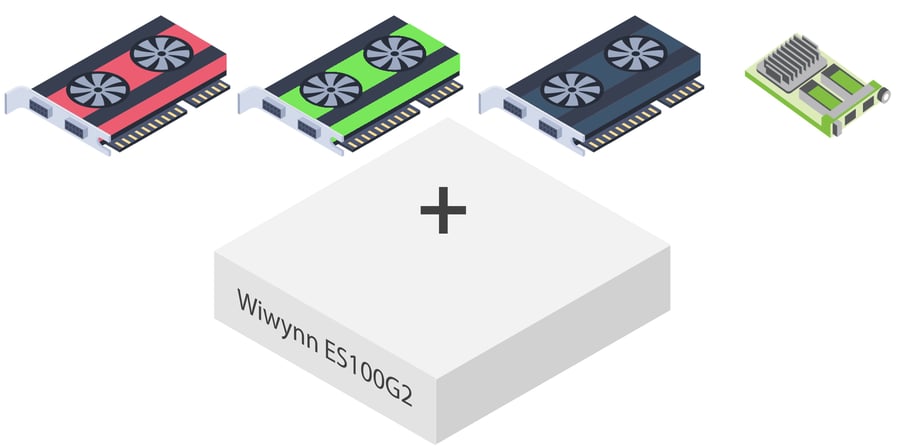

ES100G2_AI_inference_for_versatile_edge_applications

AI Inference for Versatile Edge Applications



Tailored for agile edge workloads, the ES100G2 excels as an AI inference platform. Leveraging AI acceleration cards and flexible add-on slots, its architecture is optimized for enhanced compute and network scale-out capabilities. This delivers a solution for various tasks and fits the demands of edge service providers seeking robust edge AI applications.

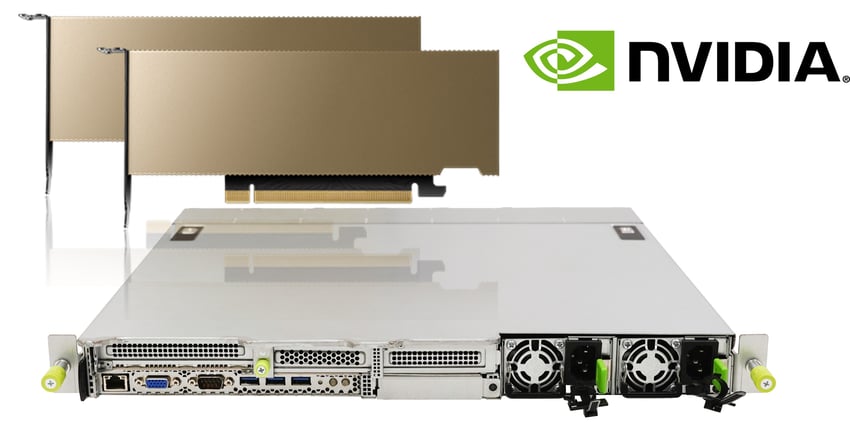

ES100G2_NGC-ready_NVQual-certified

NGC-Ready, NVQual-Certified, Wind River Criteria for Enhanced Performance



The ES100G2, featuring NVIDIA GPU Cloud (NGC)-Ready and NVQual-Certified capabilities, aligns with the Wind River Certified standard for edge computing platform excellence. Leveraging the currently deployed two NVIDIA A4 Tensor Core GPUs, these features ensure NGC compatibility and enhance edge platform reliability.

Carrier-grade and NEBS Level 3 Compliant



With its robust carrier-grade design, the ES100G2 complies with stringent NEBS Level 3 standards. This ensures unparalleled reliability, durability, and resilience, making it the ultimate choice for communication service providers (CoSPs) where availability is paramount.

ES200_Nebs3

Tech Spec



Node Specification
Model Name ES100G2 ES200G2
Hardware
Form Factor 1U 2U
Processor 5th Gen Intel® Xeon® Processors up to 225W TDP
GPUs Two NVIDIA L4 Tensor Core GPUs Two NVIDIA L40S Tensor Core GPUs
Processor Sockets 1 (1 Socket/Node)
Chipset Intel® Emmitsburg PCH C741, TPM 2.0
Memory Eight DDR5-4400/4800 DIMM Slots, up to 128GB each
Storage and I/O
Storage Two M.2 2280/22110 NVMe SSDs • Two M.2 2280/22110 NVMe SSDs
• Four U.2 NVMe SSDs
Expansion Slots • One OCP3.0 NIC card (10/25/40/50/100/200/400Gbps)
• Two HHHL PCIe Gen5 x16 PCIe expansions
• One FHHL PCIe Gen5 x16 PCIe expansion
• One OCP3.0 NIC card (10/25/40/50/100/200/400Gbps)
• Two FHFL dual-slot PCIe Gen5 x16 PCIe expansions
• One FHHL PCIe Gen5 x16 PCIe expansion
Remote Management IPMI v2.0 Compliant; RedFish®API
I/O Ports •Power Button with LED
• UID Button with LED
• Reset Button
• Three USB ports
• Management port (front side)
• VGA port
• COM port
Physical Specification
Dimensions 43.5 (H) x 438 (W) x 420 (D) mm 87(H) x 438 (W) x 420 (D) mm
Weight 10kg 15kg
PSU 800 Watts AC to DC power supply 1600 Watts AC to DC power supply
Fan Six 4056 Hot-Plug dual rotor fans, N+1 Redundant Four 8056 Hot-Plug dual rotor fans, N+1 Redundant
Environment
Operating conditions • FCC CFR47 15 (class A), CISPR 32 (class A), CISPR 35
• NEBS Level 3 compliant
Safety • IEC 62368-1:2014
• IEC 62368-1:2018
• UL 62368-1 3rd Ed
Seismic Tolerance NEBS Level 3 compliant
Acoustic Noise NEBS Level 3 compliant
Fire Resistance NEBS Level 3 compliant

Download



Category File Title Release Date Actions
Datasheet ES100G2 Datasheet 2024/01/17 Download
