Universal Cooling Management System
with DC-SCM to Manage Servers and Cooling Units

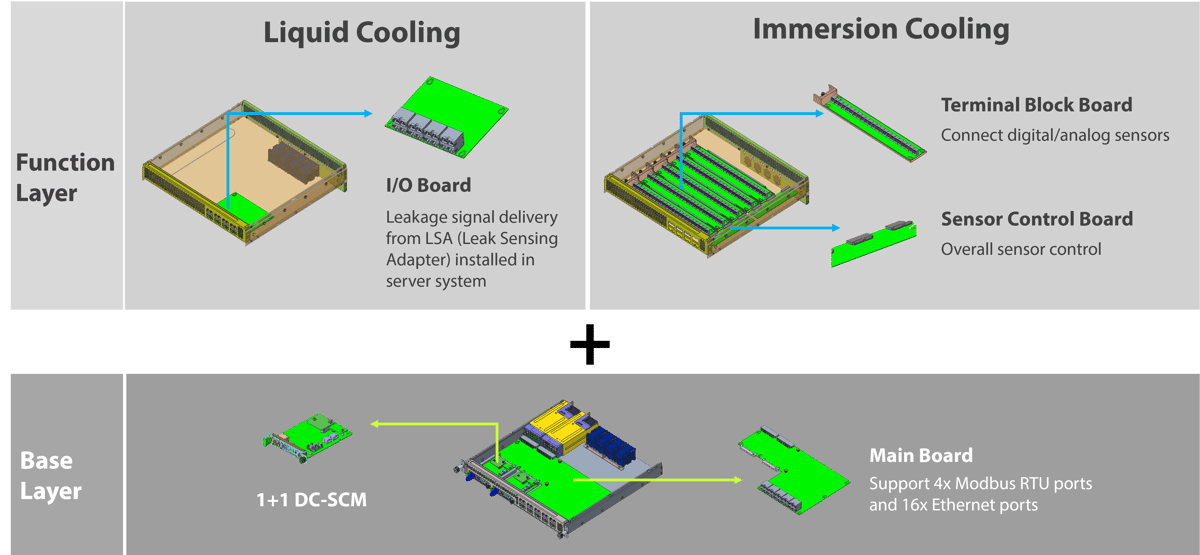

Modular Design for Various Cooling Solutions

ic_liquid_cooling_rack_mgr01

Real-Time Monitoring

ic_liquid_cooling_rack_mgr02

Cooling Energy Optimization

ic_liquid_cooling_rack_mgr03

Rapid Leak Detection and Protection

ic_immersion_cooling_tank_mgr01

Direct Connection to Digital/Analog Sensors or PLC

ic_immersion_cooling_tank_mgr02

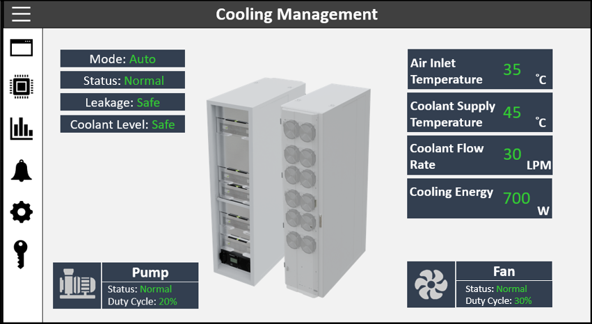

Real-Time Monitoring and Tank Status Control

Advanced Cooling Management System with DC-SCM

•OCP DC-SCM with 1+1 Redundancy

•Compatible with CRPS and 12V/48V DC Bus Bar

•Redfish Interface and Friendly User Interface

•Real-Time Monitoring, Cooling Energy Optimization, Rapid Leak Detection, and Protection

Specification

UMS_spec

SKU	Air Cooling	Liquid Cooling	Immersion Cooling
Processor	‧ ASPEED AST2600 (DC-SCM 1+1 redundancy)
BMC User Interface	‧ Redfish API
BMC Code Base	‧ OpenBMC

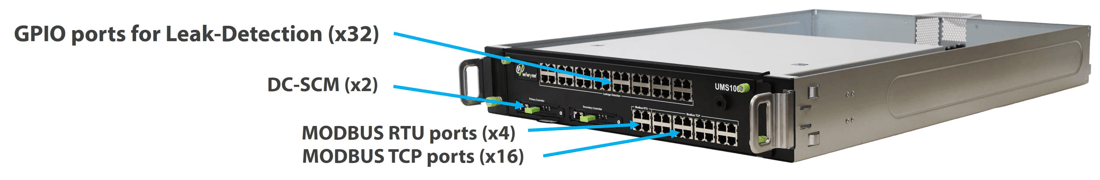

Management Port	‧ 1Gbps (RJ45) x1 on DC-SCM ‧ MODBUS RTU (RJ45) x4 ‧ MODBUS TCP 100Mbps (RJ45) x16
HMI (Human Machine Interface)	‧ WebUI
Device U (height)	‧ 1RU	‧ 2RU
Chassis Dimension (WDH)	‧ 440 * 390 * 43.5mm	‧ 440 * 390 * 86.7mm
Power Source	‧ CRPS with redundancy 12V/ 48V busbar
Additional I/O Port		‧ GPIO (RJ45) x16	‧ Primary Sensors: 75 pcs ‧ Backup Sensors: 50 pcs
Key Redundant Parts	‧ BMC	‧ BMC	‧ BMC ‧ Sensors
